Wire Rope Isolator – Reliable Protection for Your Equipment
Stop Vibrations from Disrupting Your Business
I understand how costly unexpected equipment failures and hidden vibrations can be for your operations. Our wire rope isolators are precision-engineered to absorb shocks and vibrations before they cause damage—ensuring your machinery runs smoothly and lasts longer.
Why Choose Adonitech Wire Rope Isolators?
Built to Endure
Stainless steel construction resists corrosion, oils, and extreme temperatures, making our isolators ideal for the toughest industrial environments.
Custom Fit, No Guesswork
Sizes range from compact 25 mm height and 30 mm width, with various load capacities tailored for small electronics to heavy machinery. We help you pick the precise fit for your needs.
Maintenance-Free Confidence
Once installed, our isolators keep performing without added upkeep, saving you time and reducing downtime risks.
Versatile Applications
Perfect for defense, aerospace, medical, transportation, and industrial equipment needing superior shock absorption.

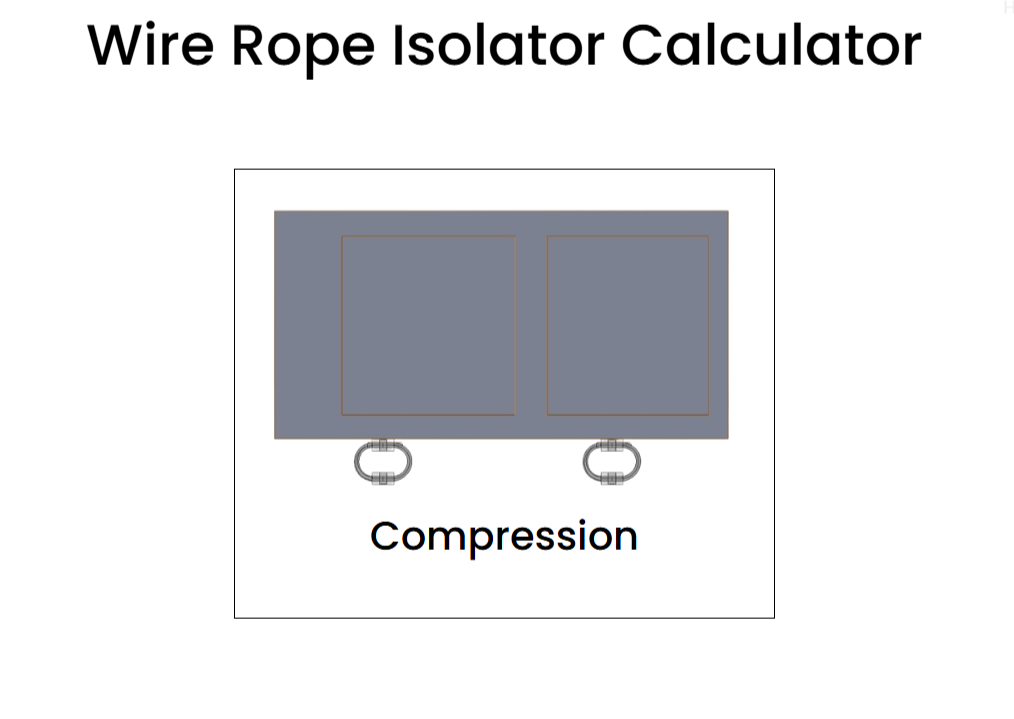

How It Works

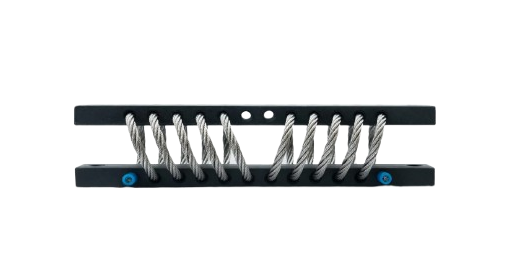

Our wire rope isolators use tightly wound steel cables mounted between durable bars. This design dampens vibration energy from all directions, protecting sensitive equipment against mechanical stresses and transport shocks with stable, consistent performance.
Find Your Perfect Isolation Solution
Worried about compatibility or performance for your specific machinery? Our engineers work closely with you to understand your environment and recommend the best wire rope isolator size and configuration.
Get Started Today
Don’t let hidden vibrations jeopardize your investments. Contact us for a personalized consultation and fast, no-obligation quote. Let’s secure your equipment’s future with Adonitech’s proven wire rope isolators.
Key Features
Durable Stainless Steel Construction
Corrosion-resistant and built for harsh environments, including marine and outdoor applications
Multidirectional Isolation
Absorbs vibrations and shocks in axial, lateral, and rotational directions for comprehensive protection
Wide Temperature Tolerance
Performs effectively in extreme temperatures, ensuring consistent reliability
Maintenance-Free
Requires no lubrication or servicing, reducing downtime and operational costs
Customizable Options
Available in various sizes and configurations to suit specific load capacities and performance needs
Compact and Lightweight
Easy to install and integrate into new or existing systems without adding bulk
Applications
Adonitech Wire Rope Isolators are trusted across industries
Defense and Aerospace
Protect navigation systems, radar units, and communication devices from harsh shocks
Medical Equipment

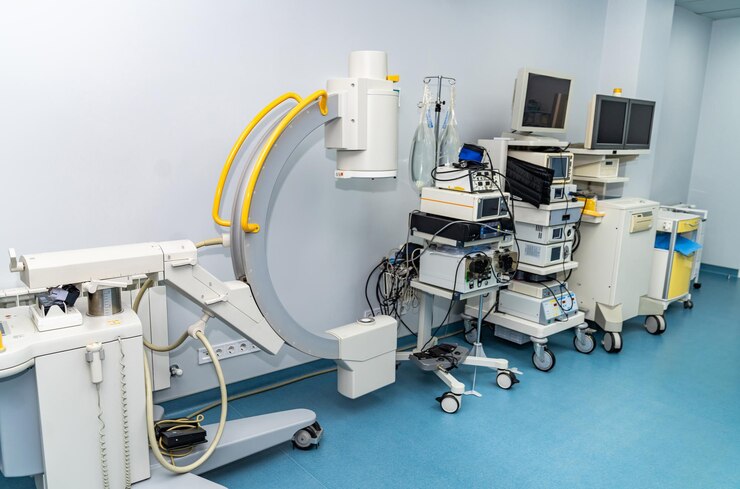

Ensure smooth operation of sensitive instruments like MRI machines and imaging devices
Industrial Machinery
Isolate compressors, pumps, and HVAC systems from vibrations to enhance performance
Automotive and Transportation
Minimize noise and vibrations in heavy-duty vehicles, railways, and ships
Electronics
Safeguard control panels and delicate electronic components from damage

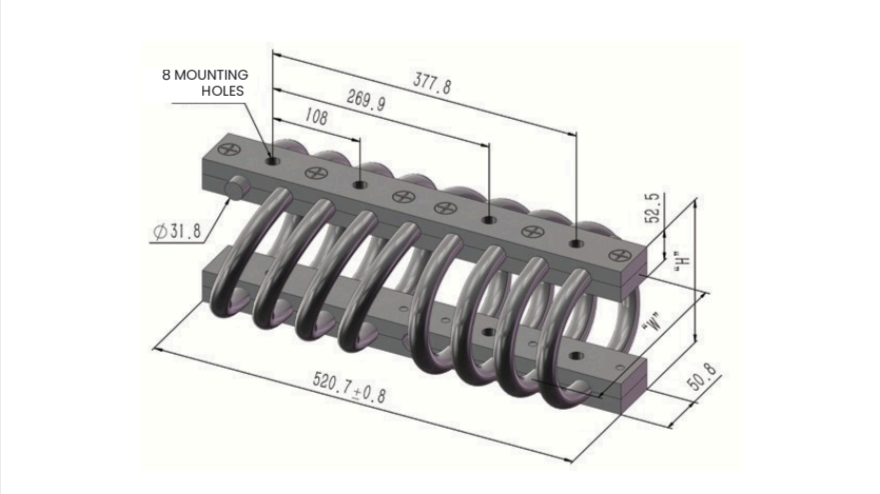

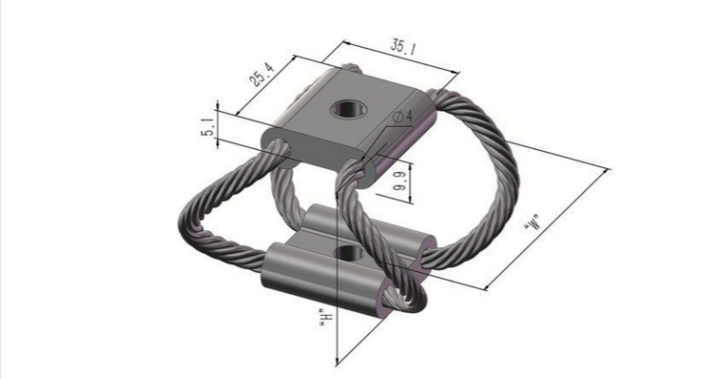

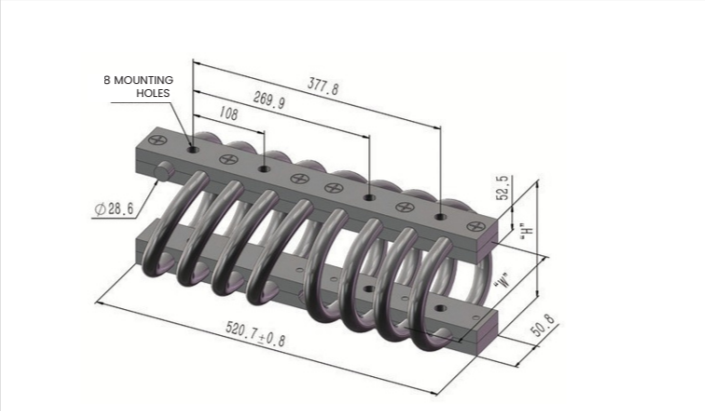

Dimensions and Specifications

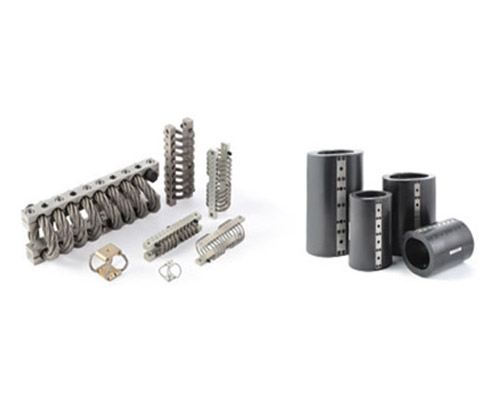

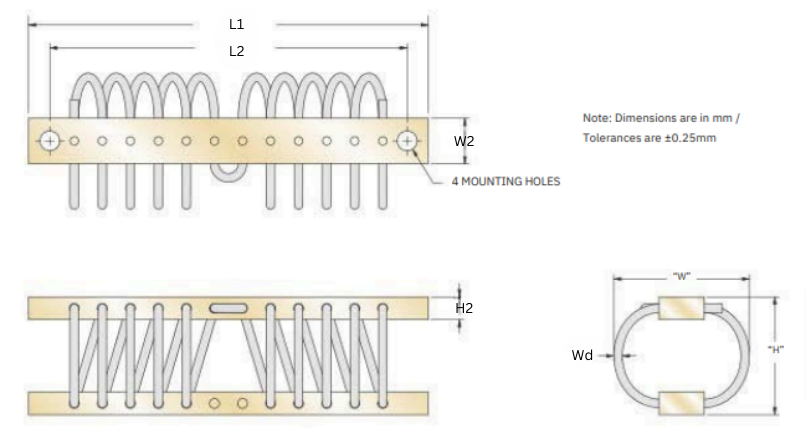

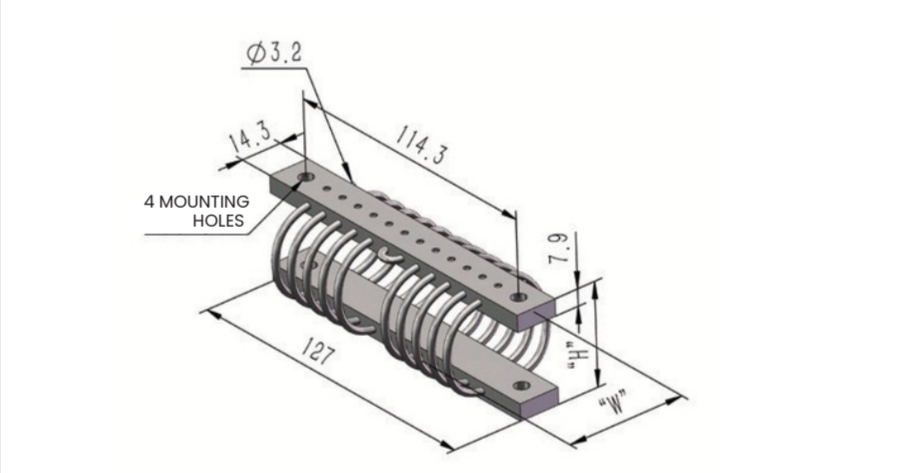

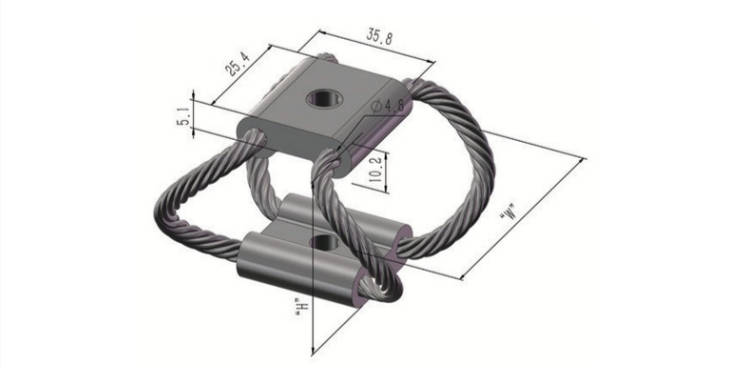

Wire Rope Vibration Isolators

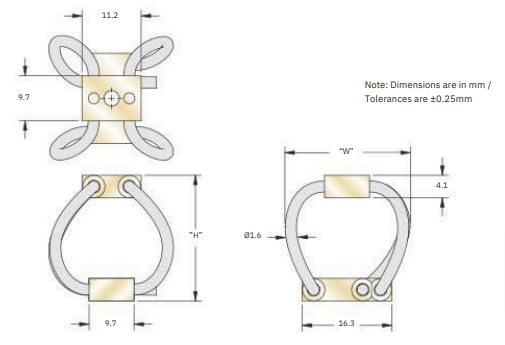

Compact Wire Rope Vibration Isolators

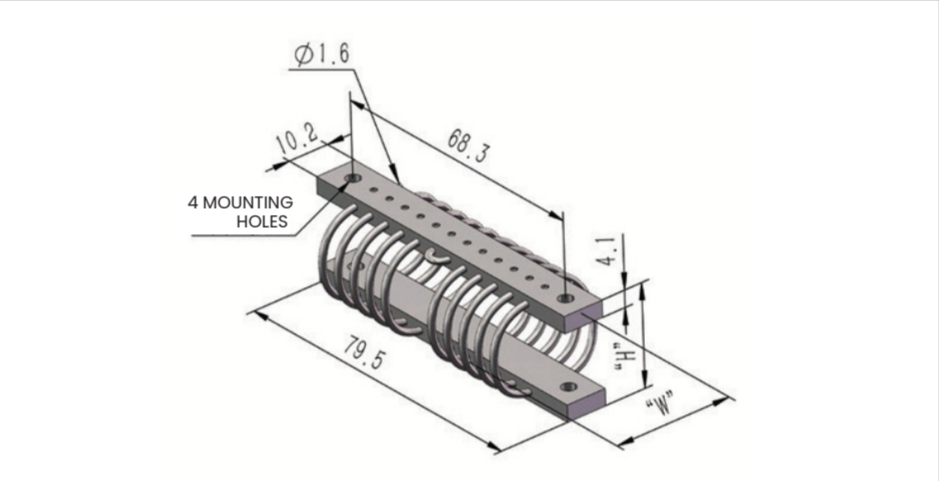

Wire Rope Vibration Isolators

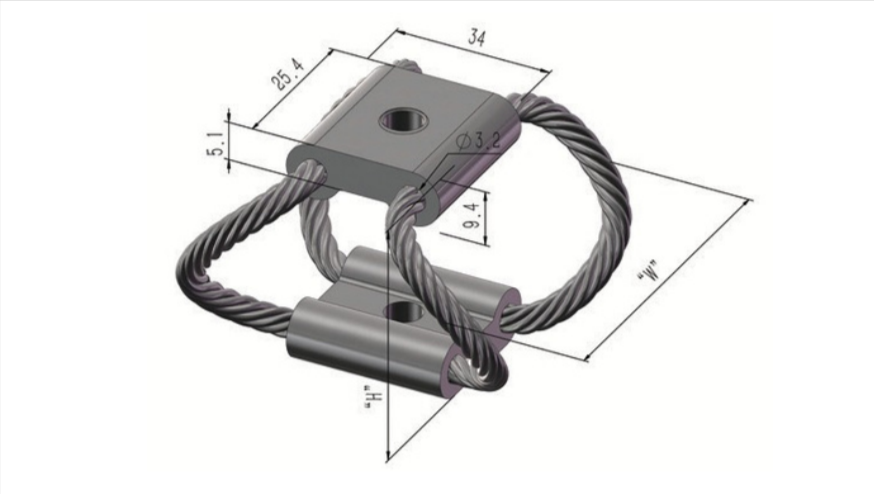

WR2 Series
| Model | Height (“H”) mm | Width (Re) mm | Unit Weight Kg | Mounting Options | Thru Hole mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR2-100 | 18 | 25 ± 1.52 | 25 | 0.02 | B, D, E | Ø4.7 ± 0.13 | M4 X 0.7 | 90° | 79.5 | 68.3 | 10.2 | 4.1 | 1.6 |
| WR2-200 | 20 | 28 | 0.02 | ||||||||||
| WR2-400 | 25 | 30 | 0.03 | ||||||||||
| WR2-600 | 28 | 33 | 0.03 | ||||||||||
| WR2-700 | 30 | 36 | 0.03 | ||||||||||
| WR2-800 | 33 | 38 | 0.03 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR2-100 | 47.0 | 8.6 | 36.0 | 22.0 |
| 2 | WR2-200 | 36.0 | 9.7 | 25.0 | 16.0 |
| 3 | WR2-400 | 31.0 | 14.7 | 17.0 | 8.8 |
| 4 | WR2-600 | 27.0 | 17.8 | 12.0 | 6.1 |
| 5 | WR2-700 | 22.0 | 18.8 | 11.0 | 5.3 |
| 6 | WR2-800 | 20.0 | 21.8 | 7.9 | 3.9 |

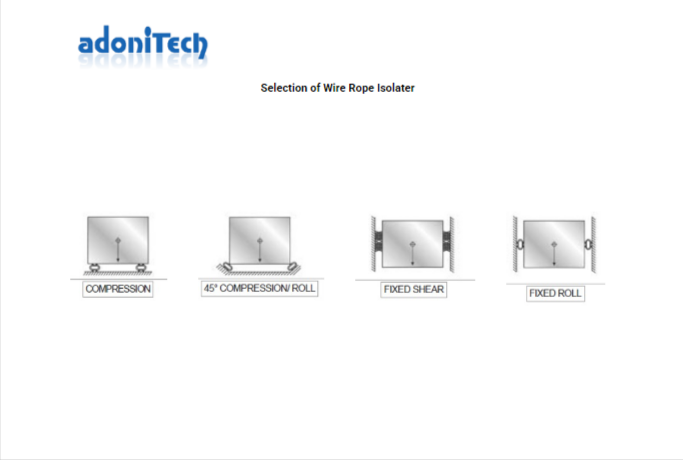

45° Compression / Rol
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR2-100 | 33.0 | 11.7 | 20.0 | 11.4 |
| 2 | WR2-200 | 24.0 | 14.7 | 14.0 | 7.0 |
| 3 | WR2-400 | 24.0 | 20.8 | 11.0 | 4.7 |
| 4 | WR2-600 | 18.0 | 24.9 | 7.0 | 3.0 |
| 5 | WR2-700 | 18.0 | 26.9 | 6.1 | 2.6 |
| 6 | WR2-800 | 16.0 | 31.0 | 5.3 | 1.9 |
Shear/Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR2-100 | 22.0 | 8.6 | 14.0 | 14.0 |
| 2 | WR2-200 | 18.0 | 10.7 | 8.8 | 8.8 |
| 3 | WR2-400 | 16.0 | 15.7 | 5.3 | 5.3 |
| 4 | WR2-600 | 13.0 | 18.8 | 3.9 | 3.9 |
| 5 | WR2-700 | 13.0 | 19.8 | 3.2 | 3.2 |
| 6 | WR2-800 | 11.0 | 22.9 | 2.3 | 2.3 |
WR3 Series
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR3-100 | 23 | ± 1.52 | 28 | 0.06 | B, D, E | Ø5.6 ± 0.13 | M5 X 0.8 | 90° | 112.3 | 100.3 | 12.7 | 4.4 | 2.4 |
| WR3-200 | 25 | 30 | 0.07 | ||||||||||
| WR3-400 | 28 | 33 | 0.07 | ||||||||||
| WR3-600 | 33 | 38 | 0.07 | ||||||||||
| WR3-700 | 36 | 41 | 0.07 | ||||||||||
| WR3-800 | 38 | 43 | 0.08 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR3-100 | 85.0 | 8.6 | 65.0 | 40.0 |
| 2 | WR3-200 | 76.0 | 10.7 | 51.0 | 30.0 |
| 3 | WR3-400 | 62.0 | 13.7 | 37.0 | 19.0 |
| 4 | WR3-600 | 44.0 | 17.8 | 23.0 | 11.0 |
| 5 | WR3-700 | 40.0 | 20.8 | 18.0 | 7.9 |
| 6 | WR3-800 | 40.0 | 22.9 | 16.0 | 7.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR3-100 | 62.0 | 12.7 | 38.0 | 20.0 |
| 2 | WR3-200 | 53.0 | 15.7 | 28.0 | 14.0 |
| 3 | WR3-400 | 44.0 | 18.8 | 21.0 | 9.6 |
| 4 | WR3-600 | 36.0 | 25.9 | 13.0 | 5.6 |
| 5 | WR3-700 | 31.0 | 27.9 | 11.0 | 4.4 |
| 6 | WR3-800 | 27.0 | 32.0 | 9.6 | 3.5 |
Shear/Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR3-100 | 44.0 | 9.7 | 24.0 | 24.0 |
| 2 | WR3-200 | 40.0 | 11.7 | 18.0 | 48.0 |
| 3 | WR3-400 | 31.0 | 13.7 | 12.0 | 12.0 |
| 4 | WR3-600 | 27.0 | 18.8 | 7.0 | 7.0 |
| 5 | WR3-700 | 22.0 | 21.8 | 5.3 | 5.3 |
| 6 | WR3-800 | 18.0 | 23.9 | 4.4 | 4.4 |
WR4 Series
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR4-100 | 28 | ± 1.52 | 36 | 0.12 | B, D, E | Ø6.9 ± 0.13 | M6 X 1.0 | 90° | 127 | 114.3 | 14.3 | 7.9 | 3.2 |
| WR4-200 | 30 | 38 | 0.12 | ||||||||||
| WR4-400 | 33 | 41 | 0.13 | A, B, C, D, E, S | |||||||||
| WR4-500 | 36 | 43 | 0.13 | ||||||||||
| WR4-600 | 38 | 46 | 0.13 | ||||||||||
| WR4-700 | 41 | 48 | 0.14 | ||||||||||
| WR4-800 | 43 | 51 | 0.14 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR4-100 | 213.0 | 9.7 | 154.0 | 91.0 |
| 2 | WR4-200 | 194.0 | 11.7 | 124.0 | 68.0 |
| 3 | WR4-300 | 166.0 | 13.7 | 13.7 | 51.0 |
| 4 | WR4-400 | 156.0 | 16.8 | 16.8 | 39.0 |
| 5 | WR4-500 | 142.0 | 18.8 | 18.8 | 32.0 |
| 6 | WR4-600 | 133.0 | 21.8 | 21.8 | 25.0 |
| 7 | WR4-700 | 117.0 | 23.9 | 23.9 | 21.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR4-100 | 149.0 | 13.7 | 86.0 | 46.0 |
| 2 | WR4-200 | 138.0 | 17.3 | 70.0 | 35.0 |
| 3 | WR4-300 | 118.0 | 19.8 | 53.0 | 25.0 |
| 4 | WR4-400 | 111.0 | 23.9 | 44.0 | 20.0 |
| 5 | WR4-500 | 102.0 | 26.9 | 39.0 | 16.0 |
| 6 | WR4-600 | 94.0 | 31.0 | 32.0 | 12.0 |
| 7 | WR4-700 | 84.0 | 34.0 | 26.0 | 11.0 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR4-100 | 111.0 | 9.7 | 56.0 | 56.0 |
| 2 | WR4-200 | 98.0 | 11.7 | 43.0 | 43.0 |
| 3 | WR4-300 | 93.0 | 14.7 | 31.0 | 31.0 |
| 4 | WR4-400 | 85.0 | 17.8 | 25.0 | 25.0 |
| 5 | WR4-500 | 80.0 | 19.8 | 19.0 | 19.0 |
| 6 | WR4-600 | 71.0 | 22.9 | 16.0 | 16.0 |
| 7 | WR4-700 | 62.0 | 25.9 | 12.0 | 12.0 |
WR5 Series
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR5-200 | 30 | ± 1.52 | 41 | 0.15 | B, D, E | Ø6.9 ± 0.13 | M6 X 1.0 | 90° | 127 | 114.3 | 14.3 | 7.9 | 4 |
| WR5-400 | 33 | 43 | 0.15 | ||||||||||
| WR5-600 | 38 | 48 | 0.16 | A, B, C, D, E, S | |||||||||
| WR5-800 | 46 | ± 3.30 | 53 | 0.17 | |||||||||
| WR5-900 | 53 | 64 | 0.18 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR5-200 | 364.0 | 12.7 | 222.0 | 117.0 |
| 2 | WR5-400 | 309.0 | 14.7 | 170.0 | 88.0 |
| 3 | WR5-600 | 257.0 | 19.8 | 116.0 | 54.0 |
| 4 | WR5-800 | 216.0 | 24.9 | 84.0 | 37.0 |
| 5 | WR5-900 | 172.0 | 32.9 | 58.0 | 23.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR5-200 | 254.0 | 17.8 | 123.0 | 60.0 |
| 2 | WR5-400 | 218.0 | 21.8 | 96.0 | 42.0 |
| 3 | WR5-600 | 182.0 | 27.9 | 66.0 | 28.0 |
| 4 | WR5-800 | 151.0 | 35.6 | 48.0 | 18.0 |
| 5 | WR5-900 | 115.0 | 44.7 | 31.0 | 11.0 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR5-200 | 178.0 | 12.7 | 73.0 | 73.0 |
| 2 | WR5-400 | 156.0 | 15.7 | 53.0 | 53.0 |
| 3 | WR5-600 | 133.0 | 20.8 | 33.0 | 33.0 |
| 4 | WR5-800 | 111.0 | 25.9 | 23.0 | 23.0 |
| 5 | WR5-900 | 33.5 | 33.5 | 7.9 | 7.9 |
WR6 Series
| Model | Height (“H”) mm | Width (Re) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR6-200 | 30 | ± 1.52 | 36 | 0.19 | D | Ø6.9 ± 0.13 | M6 X 1.0 | 90° | 127 | 114.3 | 14.3 | 9.5 | 4.8 |
| WR6-300 | 33 | 38 | 0.20 | ||||||||||
| WR6-400 | 36 | 41 | 0.21 | B, D, E | |||||||||
| WR6-500 | 38 | 43 | 0.21 | A, B, C, D, E, S | |||||||||
| WR6-600 | 41 | 46 | 0.22 | ||||||||||
| WR6-700 | 43 | 48 | 0.25 | ||||||||||
| WR6-800 | 51 | 58 | 0.26 | ||||||||||
| WR6-850 | 54 | ± 3.30 | 75 | 0.27 | |||||||||
| WR6-900 | 62 | 88 | 0.28 | ||||||||||
| WR6-950 | 81 | 107 | 0.29 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR6-200 | 734.0 | 8.6 | 578.0 | 363.0 |
| 2 | WR6-300 | 712.0 | 11.7 | 455.0 | 252.0 |
| 3 | WR6-400 | 601.0 | 13.7 | 347.0 | 189.0 |
| 4 | WR6-500 | 578.0 | 15.7 | 301.0 | 152.0 |
| 5 | WR6-600 | 512.0 | 18.8 | 244.0 | 117.0 |
| 6 | WR6-700 | 489.0 | 20.8 | 212.0 | 96.0 |
| 7 | WR6-800 | 365.0 | 26.9 | 136.0 | 58.0 |
| 8 | WR6-850 | 236.0 | 29.5 | 82.0 | 33.0 |
| 9 | WR6-900 | 178.0 | 36.6 | 54.0 | 21.0 |
| 10 | WR6-950 | 120.0 | 52.8 | 29.0 | 10.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR6-200 | 534.0 | 12.7 | 341.0 | 179.0 |
| 2 | WR6-300 | 512.0 | 16.8 | 258.0 | 126.0 |
| 3 | WR6-400 | 432.0 | 19.8 | 197.0 | 93.0 |
| 4 | WR6-500 | 409.0 | 22.9 | 172.0 | 75.0 |
| 5 | WR6-600 | 373.0 | 26.9 | 141.0 | 58.0 |
| 6 | WR6-700 | 350.0 | 29.0 | 123.0 | 49.0 |
| 7 | WR6-800 | 260.0 | 38.1 | 77.0 | 28.0 |
| 8 | WR6-850 | 177.0 | 41.7 | 49.0 | 18.0 |
| 9 | WR6-900 | 136.0 | 51.3 | 33.0 | 11.0 |
| 10 | WR6-950 | 91.0 | 74.7 | 18.0 | 5.3 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR6-200 | 356.0 | 8.6 | 224.0 | 22.4 |
| 2 | WR6-300 | 356.0 | 11.7 | 156.0 | 156.0 |
| 3 | WR6-400 | 334.0 | 16.8 | 112.0 | 112.0 |
| 4 | WR6-500 | 311.0 | 19.8 | 93.0 | 93.0 |
| 5 | WR6-600 | 289.0 | 19.8 | 70.0 | 70.0 |
| 6 | WR6-700 | 267.0 | 21.8 | 60.0 | 60.0 |
| 7 | WR6-800 | 200.0 | 27.9 | 35.0 | 35.0 |
| 8 | WR6-850 | 58.0 | 31.0 | 11.0 | 11.0 |
| 9 | WR6-900 | 40.0 | 38.1 | 5.3 | 5.3 |
| 10 | WR6-950 | 22.0 | 55.9 | 2.3 | 2.3 |

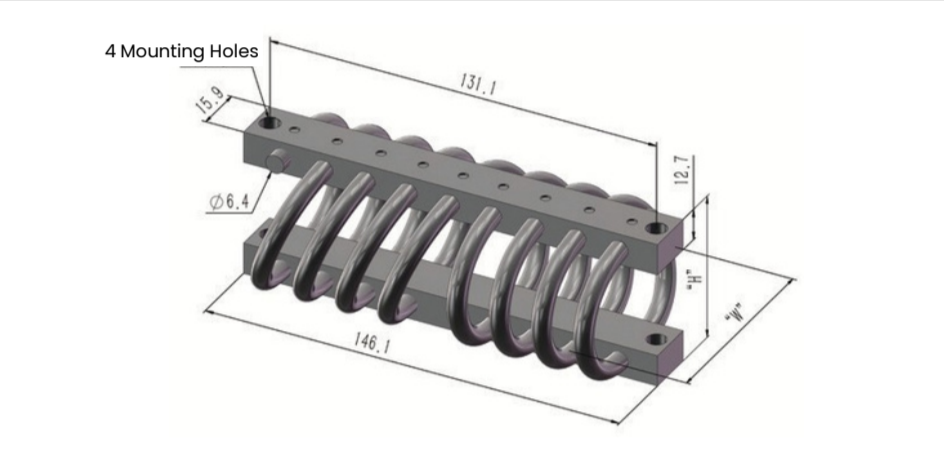

WR8 Series
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR8-200 | 48 | ± 2.54 | 56 | 0.38 | A, B, C, D, E, S | Ø6.9 ± 0.13 | M6 X 1.0 | 90° | 146.1 | 68.3 | 15.9 | 12.7 | – |
| WR8-400 | 54 | 64 | 0.41 | ||||||||||
| WR8-500 | 59 | 71 | 0.43 | ||||||||||
| WR8-600 | 64 | 80 | 0.47 | ||||||||||
| WR8-700 | 64 | 89 | 0.52 | ||||||||||
| WR8-800 | 67 | ± 3.81 | 95 | 0.54 | |||||||||
| WR8-850 | 67 | 100 | 0.57 | ||||||||||
| WR8-900 | 83 | 108 | 0.59 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR8-200 | 778.0 | 17.8 | 382.0 | 182.0 |
| 2 | WR8-400 | 667.0 | 23.9 | 266.0 | 116.0 |
| 3 | WR8-50 | 556.0 | 29.0 | 196.0 | 79.0 |
| 4 | WR8-600 | 445.0 | 32.0 | 151.0 | 60.0 |
| 5 | WR8-700 | 386.0 | 32.0 | 127.0 | 51.0 |
| 6 | WR8-800 | 351.0 | 35.6 | 109.0 | 42.0 |
| 7 | WR8-850 | 325.0 | 35.6 | 100.0 | 39.0 |
| 8 | WR8-900 | 297.0 | 50.8 | 74.0 | 25.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR8-200 | 556.0 | 25.9 | 215.0 | 89.0 |
| 2 | WR8-400 | 467.0 | 34.0 | 151.0 | 58.0 |
| 3 | WR8-50 | 390.0 | 39.6 | 109.0 | 40.0 |
| 4 | WR8-600 | 321.0 | 45.7 | 86.0 | 30.0 |
| 5 | WR8-700 | 273.0 | 45.7 | 72.0 | 25.0 |
| 6 | WR8-800 | 248.0 | 50.8 | 61.0 | 21.0 |
| 7 | WR8-850 | 229.0 | 50.8 | 56.0 | 19.0 |
| 8 | WR8-900 | 209.0 | 71.6 | 41.0 | 12.0 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR8-200 | 423.0 | 18.8 | 110.0 | 110.0 |
| 2 | WR8-400 | 356.0 | 24.9 | 72.0 | 72.0 |
| 3 | WR8-50 | 311.0 | 30.0 | 49.0 | 49.0 |
| 4 | WR8-600 | 245.0 | 34.0 | 37.0 | 37.0 |
| 5 | WR8-700 | 222.0 | 34.0 | 32.0 | 32.0 |
| 6 | WR8-800 | 200.0 | 38.1 | 25.0 | 25.0 |
| 7 | WR8-850 | 178.0 | 38.1 | 23.0 | 23.0 |
| 8 | WR8-900 | 156.0 | 52.8 | 16.0 | 16.0 |

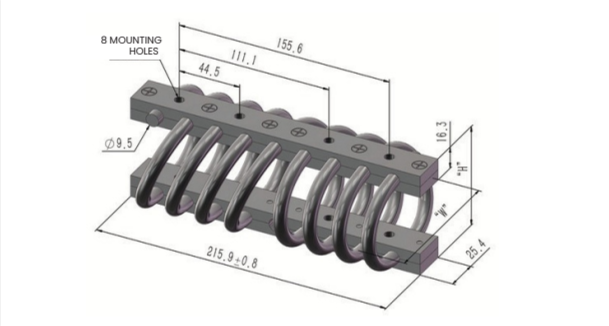

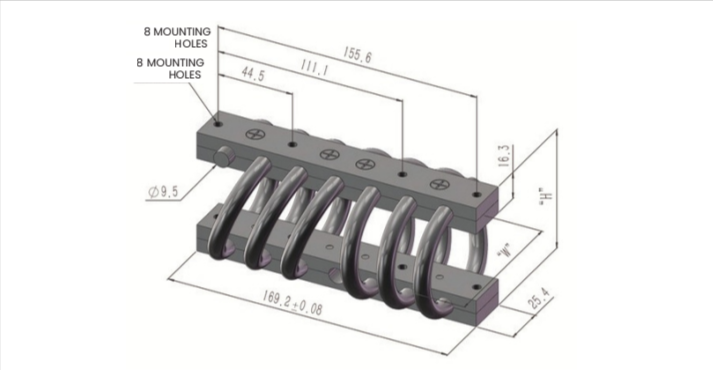

WR12 Series
6-Loop
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR12-206 | 71 | ± 2.54 | 84 | 0.83 | A, B, C, D, E, S | + 0.13 Ø9.0 -0.38 | M6 X 1.0 | 90° | 169.2 | 155.6 | 25.4 | 16.3 | – |
| WR12-306 | 74 | 89 | 0.85 | ||||||||||
| WR12-406 | 76 | 105 | 0.90 | ||||||||||
| WR12-506 | 83 | 108 | 0.95 | ||||||||||
| WR12-606 | 89 | 108 | 0.98 | ||||||||||
| WR12-706 | 105 | 121 | 1.07 | ||||||||||
| WR12-806 | 108 | 140 | 1.12 | ||||||||||
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR12-206 | 712.0 | 49.8 | 137.0 | 84.0 |
| 2 | WR12-306 | 601.0 | 71.1 | 92.0 | 35.0 |
| 3 | WR12-406 | 445.0 | 52.8 | 44.0 | 44.0 |
| 4 | WR12-506 | 341.0 | 91.9 | 44.0 | 16.0 |
| 5 | WR12-606 | 280.0 | 95.0 | 36.0 | 12.0 |
| 6 | WR12-706 | 156.0 | 71.1 | 15.0 | 15.0 |
WR12 Series
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR12-200 | 71 | ± 2.54 | 84 | 1.10 | A, B, C, D, E, S | + 0.13 Ø9.0 -0.38 | *M8 X 1.25 | 90° | 215.9 | 155.6 | 25.4 | 16.3 | – |
| WR12-300 | 74 | 89 | 1.13 | ||||||||||
| WR12-400 | 76 | 105 | 1.20 | ||||||||||
| WR12-500 | 83 | 108 | 1.26 | ||||||||||
| WR12-600 | 89 | 108 | 1.30 | ||||||||||
| WR12-700 | 105 | 121 | 1.43 | ||||||||||
| WR12-800 | 108 | 140 | 1.50 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR12-200 | 14681.0 | 34.0 | 366.0 | 179.0 |
| 2 | WR12-300 | 119.0 | 47.8 | 236.0 | 10.0 |
| 3 | WR12-400 | 912.0 | 36.1 | 130.0 | 130.0 |
| 4 | WR12-500 | 1090.0 | 51.8 | 208.0 | 3.0 |
| 5 | WR12-600 | 867.0 | 39.1 | 112.0 | 11.0 |
| 6 | WR12-700 | 890.0 | 55.9 | 159.0 | 88.0 |
| 7 | WR12-800 | 667.0 | 42.2 | 77.0 | 77.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR12-200 | 979.0 | 44.7 | 205.0 | 91.0 |
| 2 | WR12-300 | 823.0 | 63.0 | 137.0 | 65.0 |
| 3 | WR12-400 | 623.0 | 47.2 | 65.0 | 65.0 |
| 4 | WR12-500 | 778.0 | 71.1 | 123.0 | 54.0 |
| 5 | WR12-600 | 601.0 | 52.8 | 60.0 | 60.0 |
| 6 | WR12-700 | 467.0 | 91.9 | 60.0 | 47.0 |
| 7 | WR12-800 | 267.0 | 68.1 | 27.0 | 27.0 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR12-200 | 423.0 | 68.1 | 67.0 | 26.0 |
| 2 | WR12-300 | 373.0 | 95.0 | 47.0 | 21.0 |
| 3 | WR12-400 | 200.0 | 71.1 | 19.0 | 19.0 |

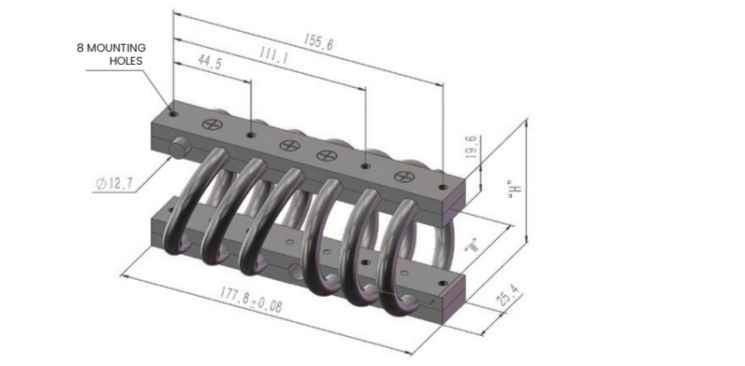

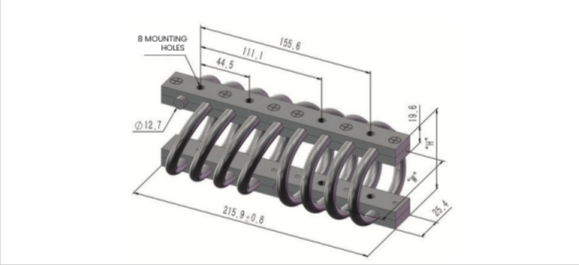

WR16 Series
6-Loop
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR16-206 | 76 | ± 2.54 | 92 | 1.36 | A, B, C, D, E, S | + 0.13 Ø9.0 -0.38 | *M8 X 1.25 | 90° | 177.8 | 155.6 | 25.4 | 19.6 | – |
| WR16-306 | 83 | 102 | 1.43 | ||||||||||
| WR16-406 | 89 | 105 | 1.50 | ||||||||||
| WR16-606 | 95 | 121 | 1.67 | ||||||||||
| WR16-706 | 108 | 133 | 1.81 | ||||||||||
| WR16-806 | 124 | 144 | 2.02 | ||||||||||
| WR16-856 | 137 | 156 | 2.18 | ||||||||||
| WR16-906 | 155 | 180 | 2.31 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR16-206 | 2736.0 | 32.0 | 716.0 | 352.0 |
| 2 | WR16-306 | 2291.0 | 38.1 | 531.0 | 249.0 |
| 3 | WR16-406 | 2157.0 | 43.2 | 461.0 | 208.0 |
| 4 | WR16-606 | 1735.0 | 48.8 | 343.0 | 147.0 |
| 5 | WR16-706 | 1468.0 | 59.9 | 256.0 | 103.0 |
| 6 | WR16-806 | 1290.0 | 74.7 | 296.0 | 72.0 |
| 7 | WR16-856 | 1134.0 | 85.9 | 154.0 | 54.0 |
| 8 | WR16-906 | 912.0 | 102.6 | 111.0 | 37.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR16-206 | 1935.0 | 44.7 | 405.0 | 177.0 |
| 2 | WR16-306 | 1624.0 | 52.8 | 298.0 | 126.0 |
| 3 | WR16-406 | 1535.0 | 61.0 | 263.0 | 105.0 |
| 4 | WR16-606 | 1223.0 | 68.6 | 194.0 | 74.0 |
| 5 | WR16-706 | 1045.0 | 84.8 | 144.0 | 51.0 |
| 6 | WR16-806 | 912.0 | 105.7 | 110.0 | 37.0 |
| 7 | WR16-856 | 801.0 | 121.9 | 88.0 | 28.0 |
| 8 | WR16-906 | 623.0 | 144.8 | 62.0 | 19.0 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR16-206 | 1490.0 | 33.0 | 221.0 | 221.0 |
| 2 | WR16-306 | 1223.0 | 40.1 | 156.0 | 156.0 |
| 3 | WR16-406 | 1134.0 | 45.2 | 130.0 | 130.0 |
| 4 | WR16-606 | 912.0 | 50.8 | 91.0 | 91.0 |
| 5 | WR16-706 | 601.0 | 56.9 | 60.0 | 60.0 |
| 6 | WR16-806 | 445.0 | 77.7 | 46.0 | 46.0 |
| 7 | WR16-856 | 334.0 | 90.9 | 33.0 | 33.0 |
| 8 | WR16-906 | 222.0 | 107.7 | 23.0 | 23.0 |
WR16 Series
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR16-206 | 76 | ± 2.54 | 92 | 1.81 | A, B, C, D, E, S | + 0.13 Ø9.0 -0.38 | *M8 X 1.25 | 90° | 215.9 | 155.6 | 25.4 | 19.6 | 12.7 |
| WR16-306 | 83 | 102 | 1.91 | ||||||||||
| WR16-406 | 89 | 105 | 2.00 | ||||||||||
| WR16-606 | 95 | 121 | 2.22 | ||||||||||
| WR16-706 | 108 | 133 | 2.40 | ||||||||||
| WR16-806 | 124 | 144 | 2.70 | ||||||||||
| WR16-856 | 137 | 156 | 2.90 | ||||||||||
| WR16-906 | 155 | 180 | 3.09 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR16-200 | 3648.0 | 32.0 | 954.0 | 471.0 |
| 2 | WR16-300 | 3047.0 | 38.1 | 708.0 | 333.0 |
| 3 | WR16-400 | 2869.0 | 43.2 | 613.0 | 278.0 |
| 4 | WR16-600 | 2313.0 | 48.8 | 457.0 | 196.0 |
| 5 | WR16-700 | 1957.0 | 59.9 | 340.0 | 137.0 |
| 6 | WR16-800 | 1735.0 | 74.7 | 261.0 | 96.0 |
| 7 | WR16-850 | 1512.0 | 85.9 | 207.0 | 74.0 |
| 8 | WR16-900 | 1201.0 | 102.6 | 148.0 | 49.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR16-200 | 2580.0 | 44.7 | 539.0 | 236.0 |
| 2 | WR16-300 | 2157.0 | 52.8 | 398.0 | 168.0 |
| 3 | WR16-400 | 2046.0 | 61.0 | 349.0 | 138.0 |
| 4 | WR16-600 | 1624.0 | 68.6 | 259.0 | 98.0 |
| 5 | WR16-700 | 1401.0 | 84.8 | 193.0 | 68.0 |
| 6 | WR16-800 | 1223.0 | 105.7 | 147.0 | 49.0 |
| 7 | WR16-850 | 1068.0 | 121.9 | 117.0 | 37.0 |
| 8 | WR16-900 | 823.0 | 144.8 | 83.0 | 25.0 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR16-200 | 2936.0 | 33.0 | 294.0 | 294.0 |
| 2 | WR16-300 | 1713.0 | 40.1 | 207.0 | 207.0 |
| 3 | WR16-400 | 1557.0 | 45.2 | 173.0 | 173.0 |
| 4 | WR16-600 | 1201.0 | 50.8 | 121.0 | 121.0 |
| 5 | WR16-700 | 801.0 | 56.9 | 81.0 | 81.0 |
| 6 | WR16-800 | 601.0 | 77.7 | 60.0 | 60.0 |
| 7 | WR16-850 | 445.0 | 90.9 | 46.0 | 46.0 |
| 8 | WR16-900 | 289.0 | 107.7 | 30.0 | 30.0 |

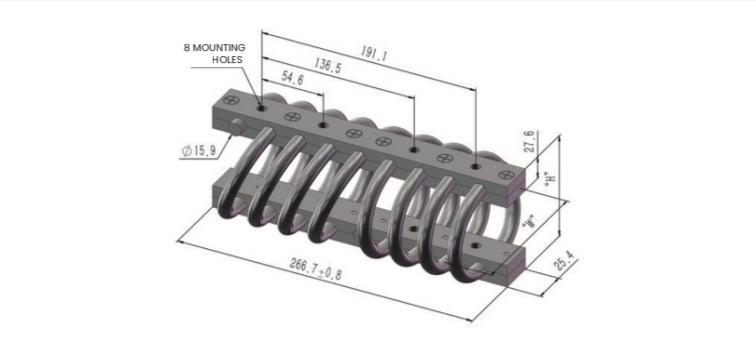

WR20 Series
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR20-200 | 89 | ± 3.30 | 102 | 3.00 | C, D | + 0.13 Ø11.0 -0.38 | M10 X 1.5 | 90° | 368.3 | 266.7 | 38.1 | 40 | 13.5 |
| WR20-300 | 99 | 112 | 3.20 | A, B, C, D, E, S | |||||||||
| WR20-400 | 102 | 121 | 3.40 | ||||||||||
| WR20-600 | 109 | 135 | 3.70 | ||||||||||
| WR20-700 | 119 | 152 | 4.00 | ||||||||||
| WR20-800 | 127 | 165 | 4.31 | ||||||||||
| WR20-900 | 135 | 178 | 4.63 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR20-200 | 6450.0 | 31.8 | 1676.0 | 849.0 |
| 2 | WR20-300 | 5471.0 | 38.1 | 1259.0 | 609.0 |
| 3 | WR20-400 | 5071.0 | 41.9 | 1105.0 | 504.0 |
| 4 | WR20-600 | 4204.0 | 49.5 | 821.0 | 356.0 |
| 5 | WR20-700 | 3514.0 | 58.4 | 616.0 | 252.0 |
| 6 | WR20-800 | 3180.0 | 67.3 | 511.0 | 196.0 |
| 7 | WR20-900 | 2802.0 | 73.7 | 427.0 | 159.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR20-200 | 4537.0 | 45.7 | 951.0 | 419.0 |
| 2 | WR20-300 | 3981.0 | 54.6 | 741.0 | 305.0 |
| 3 | WR20-400 | 3581.0 | 59.7 | 627.0 | 250.0 |
| 4 | WR20-600 | 2980.0 | 71.1 | 468.0 | 177.0 |
| 5 | WR20-700 | 2491.0 | 83.8 | 350.0 | 124.0 |
| 6 | WR20-800 | 2246.0 | 94.0 | 285.0 | 98.0 |
| 7 | WR20-900 | 1979.0 | 10.2 | 238.0 | 81.0 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR20-200 | 3514.0 | 34.3 | 524.0 | 524.0 |
| 2 | WR20-300 | 3025.0 | 40.6 | 375.0 | 375.0 |
| 3 | WR20-400 | 2624.0 | 43.2 | 308.0 | 308.0 |
| 4 | WR20-600 | 2135.0 | 52.1 | 215.0 | 215.0 |
| 5 | WR20-700 | 1512.0 | 61.0 | 152.0 | 152.0 |
| 6 | WR20-800 | 1223.0 | 69.9 | 123.0 | 123.0 |
| 7 | WR20-900 | 979.0 | 76.2 | 98.0 | 98.0 |
WR28 Series
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR28-200 | 133 | ± 6.35 | 140 | 8.40 | C, D | + 0.13 Ø13.5 – 0.38 | M12 X 1.75 | 90° | 368.3 | 266.7 | 38.1 | 40 | – |
| WR28-400 | 152 | 165 | 9.53 | A, B, C, D, E, S | |||||||||
| WR28-600 | 159 | 178 | 9.90 | ||||||||||
| WR28-800 | 191 | 210 | 11.50 | ||||||||||
| WR28-900 | 216 | 235 | 12.70 | ||||||||||
| WR28-950 | 216 | 286 | 13.90 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR28-200 | 12.3 | 50.8 | 2362.0 | 1010.0 |
| 2 | WR28-400 | 9.4 | 67.3 | 1513.0 | 585.0 |
| 3 | WR28-600 | 8.5 | 74.9 | 1270.0 | 469.0 |
| 4 | WR28-800 | 6.5 | 102.9 | 800.0 | 263.0 |
| 5 | WR28-900 | 5.4 | 125.7 | 585.0 | 180.0 |
| 6 | WR28-950 | 3.7 | 125.7 | 377.0 | 138.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR28-200 | 8.7 | 72.4 | 1348.0 | 503.0 |
| 2 | WR28-400 | 6.7 | 96.5 | 860.0 | 289.0 |
| 3 | WR28-600 | 6.0 | 105.2 | 712.0 | 235.0 |
| 4 | WR28-800 | 4.5 | 144.8 | 448.0 | 11.0 |
| 5 | WR28-900 | 3.3 | 177.8 | 327.0 | 89.0 |
| 6 | WR28-950 | 2.1 | 177.8 | 212.0 | 70.0 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR28-200 | 6.1 | 53.3 | 618.0 | 618.0 |
| 2 | WR28-400 | 3.5 | 71.1 | 356.0 | 356.0 |
| 3 | WR28-600 | 2.9 | 77.5 | 291.0 | 291.0 |
| 4 | WR28-800 | 1.6 | 108.0 | 163.0 | 163.0 |
| 5 | WR28-900 | 1.1 | 132.1 | 112.0 | 112.0 |
| 6 | WR28-950 | 0.8 | 132.1 | 77.0 | 77.0 |
WR36 Series
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR36-200 | 178 | ± 6.35 | 216 | 20.9 | A, B, C, D, E, S | + 0.13 Ø19.8 – 0.38 | M18 X 2.5 | 90° | 520.7 | 377.8 | 50.8 | 52.5 | 28.6 |
| WR36-400 | 216 | 241 | 24.0 | ||||||||||
| WR36-600 | 235 | 260 | 25.0 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR36-200 | 16.9 | 67.3 | 27061.0 | 1044.0 |
| 2 | WR36-400 | 14.50 | 102.9 | 774.0 | 583.0 |
| 3 | WR36-600 | 12.8 | 119.4 | 1415.0 | 445.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR36-200 | 12.0 | 96.5 | 1541.0 | 518.0 |
| 2 | WR36-400 | 9.9 | 144.8 | 993.0 | 292.0 |
| 3 | WR36-600 | 8.0 | 168.9 | 799.0 | 222.0 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | WR36-200 | 6.3 | 71.1 | 636.0 | 636.0 |
| 2 | WR36-400 | 3.60 | 108.0 | 361.0 | 361.0 |
| 3 | WR36-600 | 2.7 | 125.7 | 275.0 | 275.0 |
WR40 Series
| Model | Height (“H”) mm | Width (Ref) mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | L1 | L2 | W2 | H2 | WD | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WR40-200 | 178 | ± 6.35 | 210 | 24.0 | A, B, C, D, E, S | + 0.13 Ø19.8 – 0.38 | M18 X 2.5 | 90° | 520 | 377.8 | 50.8 | 52.5 | 31.8 |
| WR40-400 | 216 | 248 | 27.2 | ||||||||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 4 | WR40-200 | 21.6 | 67.3 | 3468.0 | 1338.0 |
| 5 | WR40-400 | 17.6 | 96.5 | 2236.0 | 758.0 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 4 | WR40-200 | 15.30 | 96.5 | 1968.0 | 664.0 |
| 5 | WR40-400 | 12.4 | 137.2 | 1256.0 | 378.0 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 4 | WR40-200 | 8.3 | 71.1 | 839.0 | 839.0 |
| 5 | WR40-400 | 4.6 | 101.6 | 468.0 | 468.0 |
Compact Wire Rope Vibration Isolators

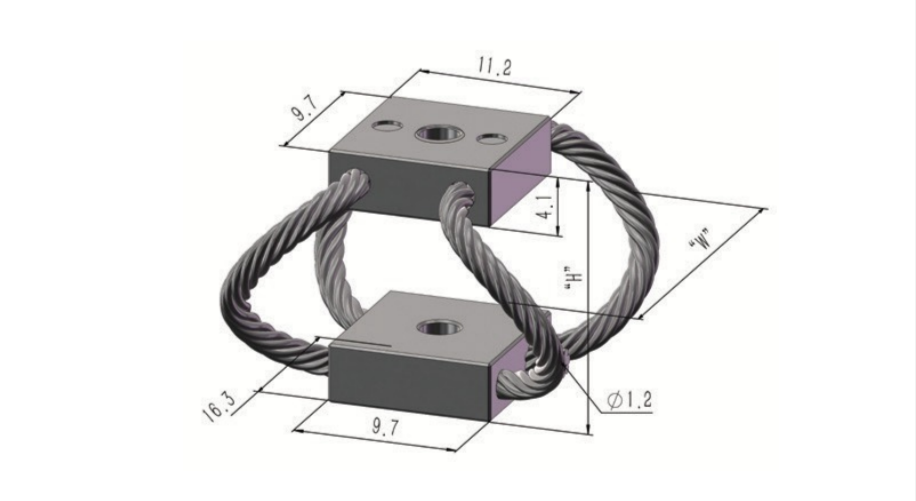

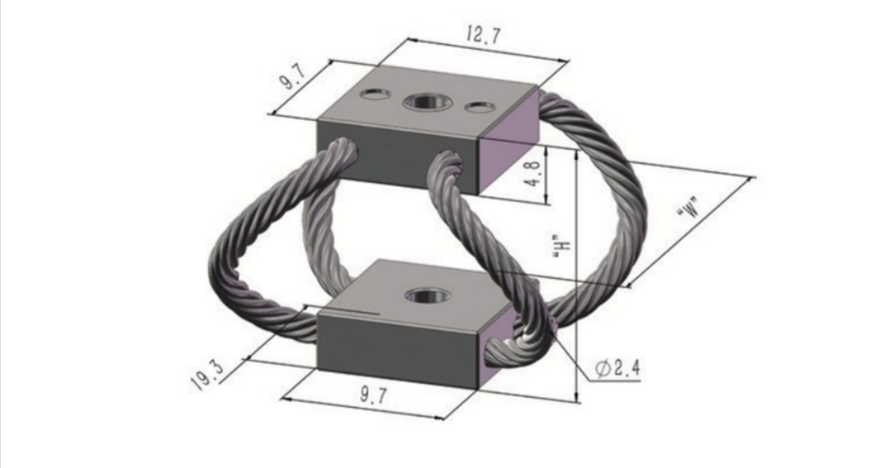

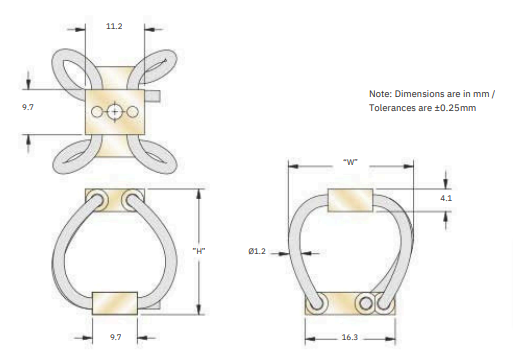

CR1 Series
| Model | Height (“H”) mm | Width (Ref) “W” mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | |
|---|---|---|---|---|---|---|---|---|
| CR1-100 | 17 | ± 1.52 | 19 | 3.1 | A, B, C, D, E, S | Ø3.30 | M3 X 0.5 | 90° |
| CR1-200 | 19 | 20 | 3.1 | |||||
| CR1-300 | 23 | 23 | 3.4 | |||||
| CR1-400 | 26 | 26 | 3.4 | |||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR1-100M | 3.3 | 6.4 | 3.9 | 1.9 |
| 2 | CR1-200M | 2.4 | 8.4 | 2.8 | 1.2 |
| 3 | CR1-300M | 1.8 | 11.9 | 1.8 | 0.6 |
| 4 | CR1-400M | 1.3 | 15.0 | 1.31 | 0.4 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR1-100M | 1.6 | 8.6 | 2.1 | 0.8 |
| 2 | CR1-200M | 1.1 | 10.9 | 1.5 | 0.4 |
| 3 | CR1-300M | 0.8 | 14.7 | 0.9 | 0.3 |
| 4 | CR1-400M | 0.5 | 18.3 | 0.5 | 0.1 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR1-100M | 1.1 | 7.9 | 0.7 | 0.7 |
| 2 | CR1-200M | 0.9 | 9.9 | 0.4 | 0.4 |
| 3 | CR1-300M | 0.7 | 13.2 | 0.3 | 0.3 |
| 4 | CR1-400M | 1.5 | 16.3 | 0.1 | 0.1 |
CR2 Series
| Model | Height (“H”) mm | Width (Ref) “W” mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | |
|---|---|---|---|---|---|---|---|---|
| CR2-100 | 16 | ± 1.52 | 20 | 3.7 | A, B, C, D, E, S | Ø3.30 | M3 X 0.5 | 90° |
| CR2-200 | 19 | 21 | 4.0 | |||||
| CR2-300 | 23 | 24 | 4.3 | |||||
| CR2-400 | 27 | 27 | 4.5 | |||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR2-100M | 12.0 | 5.8 | 11.0 | 6.1 |
| 2 | CR2-200M | 9.3 | 8.4 | 8.8 | 4.0 |
| 3 | CR2-300M | 6.7 | 11.7 | 5.3 | 1.9 |
| 4 | CR2-400M | 4.9 | 15.7 | 3.5 | 1.2 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR2-100M | 5.8 | 8.1 | 6.1 | 2.8 |
| 2 | CR2-200M | 4.9 | 10.9 | 5.3 | 1.9 |
| 3 | CR2-300M | 3.3 | 14.5 | 3.2 | 1.0 |
| 4 | CR2-400M | 2.2 | 19.1 | 1.9 | 0.5 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR2-100M | 5.6 | 7.4 | 3.0 | 3.0 |
| 2 | CR2-200M | 4.0 | 9.9 | 1.8 | 1.8 |
| 3 | CR2-300M | 2.9 | 13.0 | 1.1 | 1.1 |
| 4 | CR2-400M | 2.0 | 17.3 | 0.5 | 0.5 |

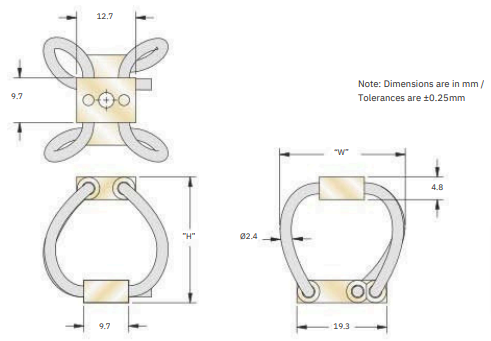

CR3 Series
| Model | Height (“H”) mm | Width (Ref) “W” mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | |
|---|---|---|---|---|---|---|---|---|
| CR3-100 | 19 | ± 1.52 | 22 | 5.7 | A, B, C, D, E, S | Ø3.30 | M3 X 0.5 | 90° |
| CR3-200 | 23 | 24 | 6.2 | |||||
| CR3-300 | 27 | 27 | 6.8 | |||||
| CR3-400 | 33 | 30 | 7.4 | |||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR3-100M | 29.0 | 7.1 | 24.0 | 12.0 |
| 2 | CR3-200M | 22.0 | 10.4 | 12.0 | 6.1 |
| 3 | CR3-300M | 18.0 | 14.2 | 8.4 | 3.5 |
| 4 | CR3-400M | 11.0 | 19.3 | 5.8 | 1.9 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR3-100M | 12.0 | 9.4 | 14.0 | 5.3 |
| 2 | CR3-200M | 10.0 | 13.2 | 8.8 | 3.2 |
| 3 | CR3-300M | 6.7 | 17.3 | 5.8 | 1.8 |
| 4 | CR3-400M | 4.4 | 22.9 | 3.5 | 0.9 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR3-100M | 12.0 | 8.4 | 6.1 | 6.1 |
| 2 | CR3-200M | 8.5 | 11.9 | 3.5 | 3.5 |
| 3 | CR3-300M | 6.2 | 15.5 | 1.8 | 1.8 |
| 4 | CR3-400M | 4.4 | 20.6 | 1.1 | 1.1 |

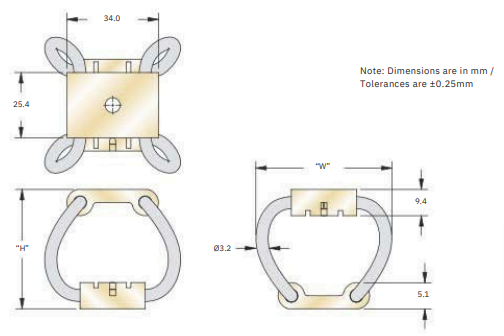

CR4 Series
| Model | Height (“H”) mm | Width (Ref) “W” mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | |
|---|---|---|---|---|---|---|---|---|
| CR4-100 | 42 | ± 1.52 | 47 | 40 | A, B, C, D, E, S | Ø7.00 | M6 X 1.0 | 90° |
| CR4-200 | 53 | 54 | 40 | |||||
| CR4-300 | 60 | 59 | 43 | |||||
| CR4-400 | 75 | 68 | 48 | |||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR4-100M | 24.0 | 19.6 | 12.0 | 5.8 |
| 2 | CR4-200M | 18.0 | 29.7 | 6.0 | 2.5 |
| 3 | CR4-300M | 13.0 | 35.8 | 4.4 | 1.6 |
| 4 | CR4-400M | 6.7 | 49.3 | 2.2 | 0.70 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR4-100M | 11.0 | 19.3 | 6.4 | 28.0 |
| 2 | CR4-200M | 6.7 | 29.5 | 3.1 | 11.0 |
| 3 | CR4-300M | 5.3 | 37.1 | 22.0 | 0.70 |
| 4 | CR4-400M | 3.6 | 52.3 | 1.1 | 0.4 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR4-100M | 8.5 | 17.3 | 1.9 | 1.9 |
| 2 | CR4-200M | 7.1 | 26.4 | 1.1 | 1.1 |
| 3 | CR4-300M | 5.3 | 33.3 | 0.70 | 0.70 |
| 4 | CR4-400M | 3.3 | 47.0 | 0.4 | 0.4 |

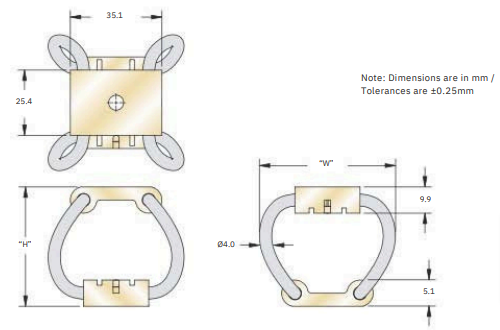

CR5 Series
| Model | Height (“H”) mm | Width (Ref) “W” mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | |
|---|---|---|---|---|---|---|---|---|
| CR5-100 | 41 | ± 1.52 | 48 | 45 | A, B, C, D, E, S | Ø7.00 | M6 X 1.0 | 90° |
| CR5-200 | 53 | 54 | 48 | |||||
| CR5-300 | 60 | 59 | 51 | |||||
| CR5-400 | 76 | 67 | 57 | |||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR5-100M | 80.0 | 19.6 | 22.0 | 11.0 |
| 2 | CR5-200M | 38.0 | 28.7 | 11.0 | 4.4 |
| 3 | CR5-300M | 27.0 | 34.8 | 7.9 | 3.2 |
| 4 | CR5-400M | 16.0 | 49.3 | 4.4 | 1.4 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR5-100M | 24.0 | 18.3 | 12.0 | 6.1 |
| 2 | CR5-200M | 13.0 | 28.4 | 5.3 | 2.3 |
| 3 | CR5-300M | 11.0 | 36.1 | 3.6 | 1.4 |
| 4 | CR5-400M | 6.7 | 53.8 | 1.9 | 0.70 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR5-100M | 20.0 | 16.5 | 4.4 | 4.4 |
| 2 | CR5-200M | 13.0 | 25.7 | 2.1 | 2.1 |
| 3 | CR5-300M | 11.0 | 32.5 | 1.4 | 1.4 |
| 4 | CR5-400M | 6.7 | 48.5 | 0.70 | 0.70 |

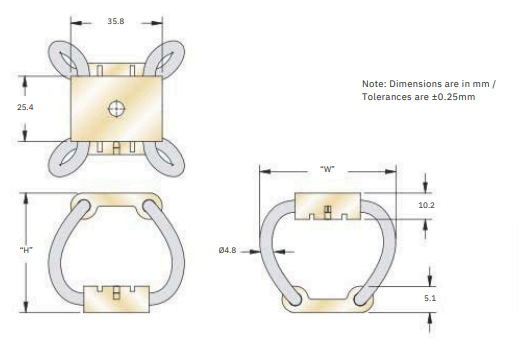

CR6 Series
| Model | Height (“H”) mm | Width (Ref) “W” mm | Unit Weight Kg | Mounting Options | Thru mm | Thread mm | C’Sink Metric | |
|---|---|---|---|---|---|---|---|---|
| CR6-100 | 47 | ± 1.52 | 54 | 57 | A, B, C, D, E, S | Ø7.00 | M6 X 1.0 | 90° |
| CR6-200 | 55 | 59 | 62 | |||||
| CR6-300 | 64 | 64 | 65 | |||||
| CR6-400 | 79 | 73 | 74 | |||||
Compression
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR6-100M | 142.0 | 22.1 | 32.0 | 16.0 |
| 2 | CR6-200M | 93.0 | 29.5 | 20.0 | 9.6 |
| 3 | CR6-300M | 67.0 | 37.6 | 15.0 | 5.3 |
| 4 | CR6-400M | 36.0 | 51.6 | 7.9 | 2.6 |
45° Compression / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR6-100M | 40.0 | 22.9 | 16.0 | 7.9 |
| 2 | CR6-200M | 33.0 | 30.5 | 9.6 | 5.3 |
| 3 | CR6-300M | 22.0 | 38.1 | 7.9 | 2.8 |
| 4 | CR6-400M | 13.0 | 53.3 | 3.5 | 1.2 |
Shear / Roll
| Curve | Model | Max. Static Load (N) | Max. Deflection (mm) | kv Vibration (kN/m) | Ks (Shock) (kN/m) |
|---|---|---|---|---|---|
| 1 | CR6-100M | 40.0 | 20.6 | 7.9 | 7.9 |
| 2 | CR6-200M | 30.0 | 27.4 | 4.4 | 4.4 |
| 3 | CR6-300M | 22.0 | 34.3 | 2.6 | 2.6 |
| 4 | CR6-400M | 16.0 | 48.0 | 1.6 | 1.6 |
Why Choose Adonitech Wire Rope Isolators?
Proven Reliability
Tested to perform in extreme environments and challenging conditions
Innovative Design
Engineered for maximum shock absorption and vibration isolation
Sustainability
Built to last, reducing replacements and environmental impact
Custom Solutions
Tailored to your operational requirements for the best results
FAQ
what kind of
classes do you offer?
*Initial one-to-one consultation, Health & Fitness Assasments Bespoke training program planing, Custom Nutrition plan & recipes. Weekly Progress Reviews
what kind of
classes do you offer?
*Initial one-to-one consultation, Health & Fitness Assasments Bespoke training program planing, Custom Nutrition plan & recipes. Weekly Progress Reviews
How to Buy
Enquiry
Contact us with your requirements
Quotation
Receive a detailed quote for your order
Purchase Order
Share your confirmed order
Payment
Make the advance or full payment as per terms
Delivery
Get your product within the specified period
Final Payment
Complete any remaining balance, if applicable
Service & Support
For technical support & service please contact
Mr. Krishnakant – +91 932284965 or fill out the form
